SYSTEM FOR STORING A CAMERA FOR QUICK USE

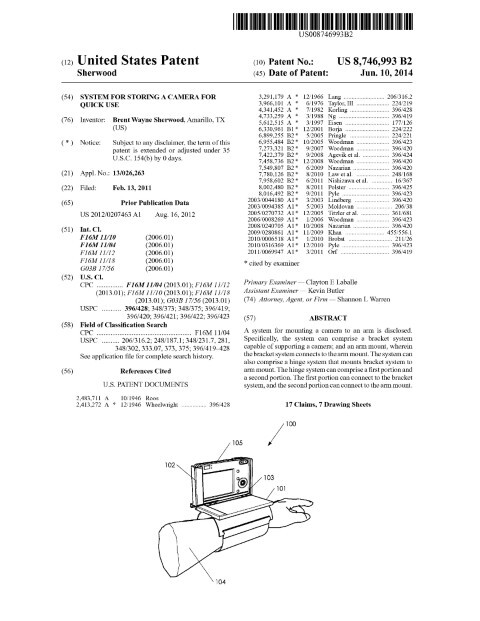

Patent Number: US 8746993 Grant Date: 2014-06-10 Filing Date: 2011-02-13
Overview
This patent describes a robust, ergonomically focused system for mounting a camera to the forearm so the device is instantly available yet protected when not in use. The filing was submitted on February 13, 2011 and the patent issued on June 10, 2014. Drafted for practical manufacture and user convenience, the disclosure details an armband with a non-use support, a two-piece bracket that secures a camera via standard threaded fasteners, and a hinge that allows quick transition between an in-use, perpendicular position and a stowed, parallel non-use position. The specification explains friction interfaces, sliding bracket tracks, and multiple clasping options—magnets or hook-and-loop—to stabilize the camera during use or to hold it securely against the arm when idle. Inventors based in Amarillo, TX and the applicant from Amarillo, TX pursued claims that emphasize modularity, reliable fastening, and straightforward manufacturing.
The firm’s prosecution reflects attention to mechanical detail, clear claim scope, and practical user scenarios that strengthen enforceability for commercial wearable-imaging products.
Key Features
- Foldable hinge with defined in-use and non-use positions
- Two-part bracket with sliding bottom portions and threaded camera fastener
- Magnetic or hook-and-loop clasp options for secure stowage
- Elastic or fastenable armband for comfortable attachment
By resolving common carrying and damage risks, this arm-mounted camera system advances wearable imaging and portable camera accessory design, with clear applicability to outdoor, event, and industrial imaging markets.
Invention Details
Abstract: A system for mounting a camera to an arm is disclosed. Specifically, the system can comprise a bracket system capable of supporting a camera; and an arm mount, wherein the bracket system connects to the arm mount. The system can also comprise a hinge system that mounts bracket system to arm mount. The hinge system can comprise a first portion and a second portion. The first portion can connect to the bracket system, and the second portion can connect to the arm mount.
Background: (1) BACKGROUND (2) This disclosure relates to a system for a camera arm mount system. (3) Today, cameras are smaller, cheaper and produce better quality pictures than ever before. As a consequence more and more people carry cameras to capture moments while on vacation and in their daily lives. In some situations, such as during an important event or at a particular location, a user may wish to take many photos. However, the user may also need the use of his or her hands, forcing the user to store and remove the camera between uses. To alleviate this problem, a few solutions have been offered. One current solution includes attaching a rope loop to the camera, capable of sliding over a wrist. Another solution is to place a neckband on the camera to allow the camera to hang around the user’s neck. Still another solution includes mounting a case to a belt buckle. (4) However, each solution mentioned above has problems associated with it. The rope loop often is too loose, and even when fitted snugly, still allows the camera to hang down, exposing it to damage, or requiring the user to hold the camera. The neckband also allows the camera to hang freely, exposing the camera to greater risk of damage, particularly if the user is in an active environment. A belt loop mounted case protects the camera, but can be bulky and requires extra time to take out the camera. (5) It would therefore be advantageous to implement a camera arm mount system. (6) SUMMARY (7) A system for mounting a camera to an arm is disclosed. Specifically, the system can comprise a bracket system capable of supporting a camera; and an arm mount, wherein the bracket system connects to the arm mount. The system can also comprise a hinge system that mounts bracket system to arm mount. The hinge system can comprise a first portion and a second portion. The first portion can connect to the bracket system, and the second portion can connect to the arm mount.
