SYSTEM FOR STORING AND RELEASING A CAMERA FOR QUICK USE
Patent Number: US 8534933 Grant Date: 2013-09-17 Filing Date: 2011-02-13
Overview
This patent describes a compact, arm-mounted camera retention and release system that streamlines quick access while protecting the device when not in use. Filed in February 2011 and granted in September 2013, the prosecution secured a set of claims covering both flexible-hinge embodiments and mechanical clasping means that enable rapid detachment and reliable reattachment. Inventors based in Amarillo, TX, and the applicant from the same location pursued multiple hinge architectures—magnetic and hook-and-loop styles, a spring-loaded sleeve-and-head connector, and a flexible material hinge with a defined bending pivot—to address different user needs and manufacturing options. The specification also defines a bracket system that accommodates a range of camera bodies, a camera fastener that locks the camera to the bracket, and distinct in-use and stowed orientations that reduce damage risk during activity.
The clear claim language and multiple alternative embodiments demonstrate thoughtful drafting to capture practical variations (flexible leather or textile hinges, magnet or Velcro clasping, and a spring-actuated connector) while preserving useful fallback positions.
Key Features
- Multiple hinge types: flexible pivot, magnets, hook-and-loop, and spring-loaded connectors
- Bracket and fastener arrangement to secure varied camera models
- Defined in-use (perpendicular) and non-use (parallel) positions for safety and convenience
This protection supports wearable imaging accessories and portable camera hardware design, reinforcing product differentiation in consumer imaging and accessory markets.
Invention Details
Abstract: A first system for mounting a camera to an arm is disclosed. Specifically, the first system comprises a bracket system, an arm mount, and a hinge system. Said bracket system is capable of supporting a camera. Said hinge system comprises a clasping device having a first portion and a second portion. Said hinge system connects said bracket system and said arm mount, and said first portion and said second portion of said clasping device are capable of selectively releasing and reattaching to one another and thereby release and reattach said bracket system and said arm mount. Further, a second system for mounting a camera to an arm is disclosed. Specifically, the second system comprises a bracket system, an arm mount, and a hinge system having a bending point. Said bracket system is capable of supporting a camera. Said hinge system connects said bracket system and said arm mount. Said hinge system comprises a flexible portion comprising a flexible material. Said bending point is in said flexible portion. And, finally, said bending point serves as a pivot point for said hinge system.
Background: (1) BACKGROUND (2) This disclosure relates to a system for a camera arm mount system. (3) Today, cameras are smaller, cheaper and produce better quality pictures than ever before. As a consequence more and more people carry cameras to capture moments while on vacation and in their daily lives. In some situations, such as during an important event or at a particular location, a user may wish to take many photos. However, the user may also need the use of his or her hands, forcing the user to store and remove the camera between uses. To alleviate this problem, a few solutions have been offered. One current solution includes attaching a rope loop to the camera, capable of sliding over a wrist. Another solution is to place a neckband on the camera to allow the camera to hang around the user’s neck. Still another solution includes mounting a case to a belt buckle. (4) However, each solution mentioned above has problems associated with it. The rope loop often is too loose, and even when fitted snugly, still allows the camera to hang down, exposing it to damage, or requiring the user to hold the camera. The neckband also allows the camera to hang freely, exposing the camera to greater risk of damage, particularly if the user is in an active environment. A belt loop mounted case protects the camera, but can be bulky and requires extra time to take out the camera. (5) It would therefore be advantageous to implement a camera arm mount system. (6) SUMMARY (7) A system for mounting a camera to an arm is disclosed. Specifically, the first system comprises a bracket system, an arm mount, and a hinge system. Said bracket system is capable of supporting a camera. Said hinge system comprises a clasping device having a first portion and a second portion. Said hinge system connects said bracket system and said arm mount, and said first portion and said second portion of said clasping device are capable of selectively releasing and reattaching to one another and thereby release and reattach said bracket system and said arm mount.

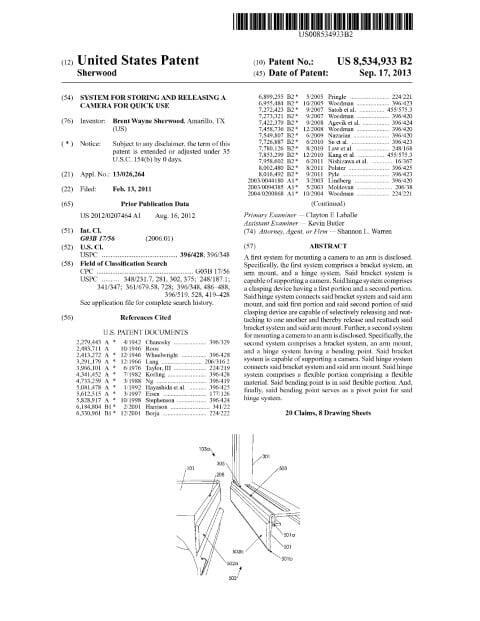

Patent Document
