Portable Head Rest With Storage Container
Patent Number: US 9058023 Grant Date: 2015-06-16 Filing Date: 2013-06-30
Overview
This patent, filed June 30, 2013 and granted June 16, 2015, protects a thoughtfully engineered portable head rest that combines ergonomic support with integrated storage and modular accessories. Inventors based in Houston, TX developed a head rest assembly whose non-parallel top and bottom surfaces create an adjustable tilted surface to accommodate multiple resting configurations. The claimed design integrates an upper and lower portion joined by a hinge, a secure latch, and a compartment sized and arranged for use as a lunch box or general storage. Removable, sanitized pads attach with hook-and-loop fasteners, and a detachable handle and multi-foot base deliver balanced portability and stable placement. A slide-in timer housed in a guided slot with a stopper exemplifies attention to user-focused details. Our firm’s drafting emphasizes clear claim scope and practical mounting and retention features to support enforceable protection across configurations and materials.
Key Features
- Adjustable slope top surface for varied ergonomic positions
- Integrated compartment adaptable as a lunch box or storage cavity
- Detachable pads and handle secured by hook-and-loop and fastening apertures
- Hinge-and-latch construction with anti-rock feet for stability
- Removable timer in a guided slot with stopper for secure attachment
By securing claims on both functional arrangement and accessory interfaces, the patent positions the invention for adoption in workplace, travel, and consumer ergonomics markets. The protection underscores the technical and commercial relevance of modular comfort solutions.
Invention Details
Abstract: A head rest system is disclosed. Said head rest system comprising a head rest assembly comprising a first side, a second side, a top side, a bottom side, a third side and a fourth side. Said top side and said bottom side are not parallel. Said top side comprises a tilted surface comprising a slope angle between said top side and said bottom side.
Background: (1) BACKGROUND (2) This disclosure relates generally to a portable head rest with storage container. One example of a head rest can be found at U.S. Pat. No. 6,601,804. However, none of the known inventions and/or patents, taken either singularly or in combination, is seen to describe the instant disclosure as claimed. Accordingly, an improved head rest assembly would be advantageous. (3) SUMMARY (4) Two head rest systems are disclosed. (5) A first head rest system is disclosed. Said first head rest system comprising: a head rest assembly comprising a first side, a second side, a top side, a bottom side, a third side and a fourth side. Said top side and said bottom side are not parallel. Said top side comprises a tilted surface comprising a slope angle between said top side and said bottom side. Said head rest assembly comprises a compartment. Said head rest assembly comprising an upper portion and a lower portion. Said upper portion and said lower portion rotateably connected with a hinge. Said head rest assembly further comprising a one or more pads. Said one or more pads releaseably attached to said head rest assembly. Said one or more pads attach to said head rest assembly with a one or more hook-and-loop fasteners. Said head rest assembly comprising a lunch box. Said slope angle of said tilted surface being adjustable. Said head rest assembly comprising a handle. Said handle being releaseably attachable to said head rest assembly with a one or more handle fastening apertures. Said head rest assembly comprising a timer. Said timer being releaseably attachable to said head rest assembly. Said head rest assembly further comprising a slot capable of releaseably holding said timer. Said slot comprising a stopper, a first guide and a second guide. (6) A second head rest system is disclosed. Said second head rest system comprising a head rest assembly comprising a first side, a second side, a top side, a bottom side, a third side and a fourth side. Said top side and said bottom side are not parallel. Said top side comprises a tilted surface comprising a slope angle between said top side and said bottom side.

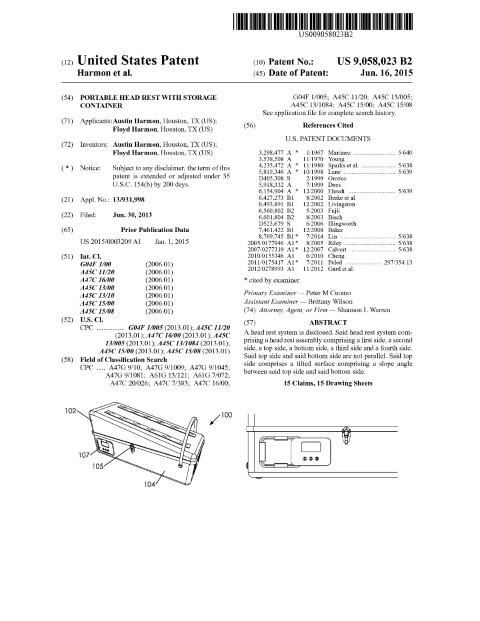

Patent Document
