Holster Beverage Holder
Patent Number: US 10307006 Grant Date: 2019-06-04 Filing Date: 2016-09-12
Overview
Filed on September 12, 2016 and granted on June 4, 2019, this patent protects a thoughtfully engineered beverage holster that combines hands-free carry, cap removal and secure storage in a single molded accessory. Drafted for robustness and practical use, the claims capture a vertically aligned cup-like containment with a C-shaped handle, a belt-clip holster interface, and an integrated cap-removal system. Inventors based in Bushland, TX and the applicant pursued multiple embodiments that address both twist-off and pry-off closures, embedding a twist-off socket with cap-teeth and a pry plate in the lower surface to support broad beverage formats. The specification also teaches central drainage, magnet apertures for one‑or‑more magnets, and optional magnetic grabs—features that enable the holster to attach to ferromagnetic surfaces and retain removed caps to minimize litter. The prosecution strategy and claim scope demonstrate careful attention to mechanical detail and accessory ergonomics, protecting both structural elements and accessory combinations (clip, magnets, socket, drain, pry plate) that differentiate the design from prior art.
Key Features
- Vertically aligned beverage containment with C-shaped handle and belt-clip holster
- Twist-off socket with cap-teeth and optional magnetic grab for cap retention
- Pry plate for pry-off caps and can-tab leverage
- Central drain aperture and embedded magnet apertures for mounting
This patent illustrates pragmatic mechanical innovation for on-the-go beverage use and highlights design details that are increasingly valued in consumer accessories and hospitality-related product lines.
Invention Details
Abstract: A beverage holder configured for selectively holding a beverage is disclosed. Said beverage holder comprising a beverage containment comprising a base portion, an upper retainer portion and a handle portion. Said base portion and said upper retainer portion comprise a round sidewall having an internal diameter being larger than an external diameter of a beverage. Said base portion comprises a bottom surface configured to receive and hold a bottom portion of said beverage. Said upper retainer portion and said base portion are aligned along a vertical axis such that when said beverage is held within said beverage containment it is held upright along said vertical axis. Said upper retainer portion and said base portion are connected to one another with said handle portion. Said handle portion extends outward away from said vertical axis so as to enable a user to grip said beverage holder with said handle portion.
Summary of the Invention: A beverage holder configured for selectively holding a beverage is disclosed. Said beverage holder comprising a beverage containment comprising a base portion, an upper retainer portion and a handle portion. Said base portion and said upper retainer portion comprise a round sidewall having an internal diameter being larger than an external diameter of a beverage. Said base portion comprises a bottom surface configured to receive and hold a bottom portion of said beverage. Said upper retainer portion and said base portion are aligned along a vertical axis such that when said beverage is held within said beverage containment it is held upright along said vertical axis. Said upper retainer portion and said base portion are connected to one another with said handle portion. Said handle portion extends outward away from said vertical axis so as to enable a user to grip said beverage holder with said handle portion.
Next, a beverage holder is disclosed. Wherein, said beverage holder is configured to selectively hold a beverage. Said beverage holder further comprises a twist-off socket. Said twist-off socket is round-shaped and comprises an internal diameter being substantially similar to an external diameter of a cap of said beverage. Said twist-off socket is configured to receive and remove a cap from said beverages by: inserting a portion of said cap into said twist-off socket, turning said beverage around a vertical axis so as to loosen said cap from said beverage, preventing said cap from turning with said beverage, and removing said cap from said beverage.
Finally, a beverage holder is disclosed comprising a beverage containment. Said beverage holder comprises a one or more magnets configured to selectively attach said beverage holder to a ferromagnetic surface.

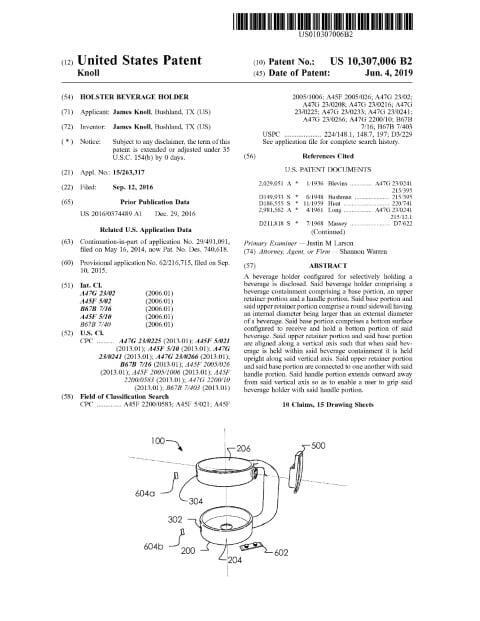

Patent Document
